The Puckle Defence Gun was a revolver based cannon invented in 1718 by British inventor and lawyer James Puckle.
en.wikipedia.org

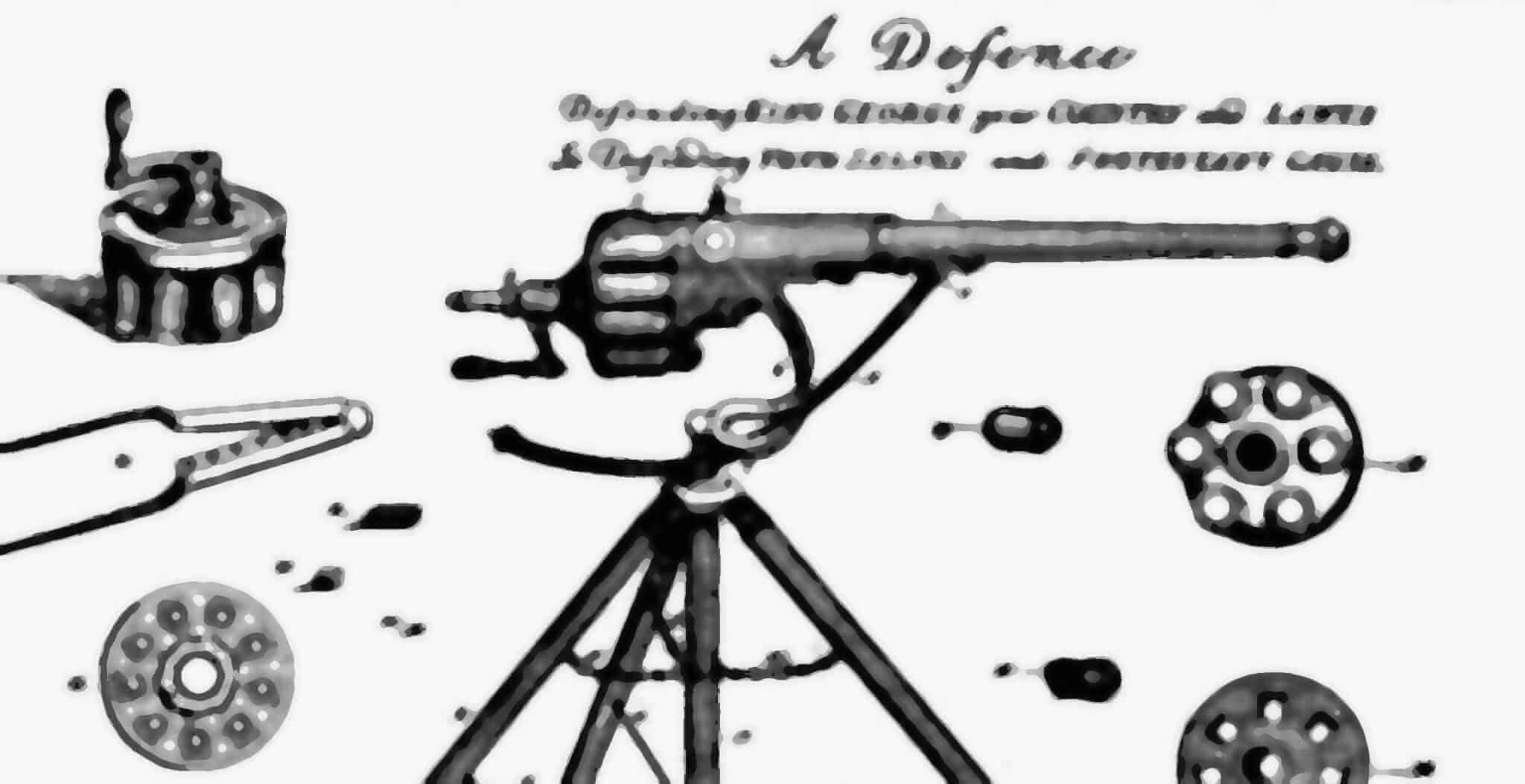

www.historic-uk.com
www.thefirearmblog.com

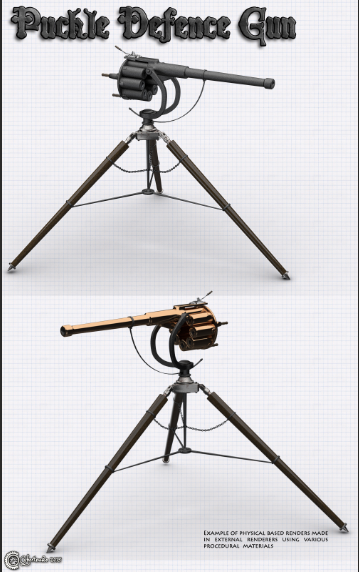

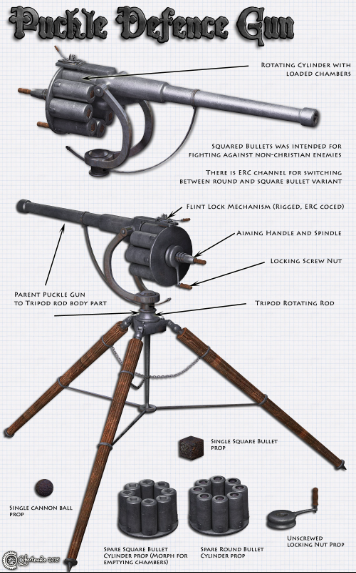

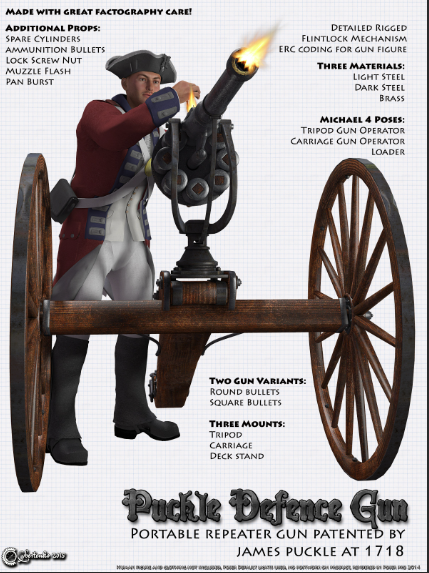

Puckle Gun was a tripod-mounted, single-barreled flintlock weapon fitted with a multishot revolving cylinder. It was intended for shipboard use to prevent boarding. It had a pre-loaded cylinder which held several (8-11) charges.
blade-city.com

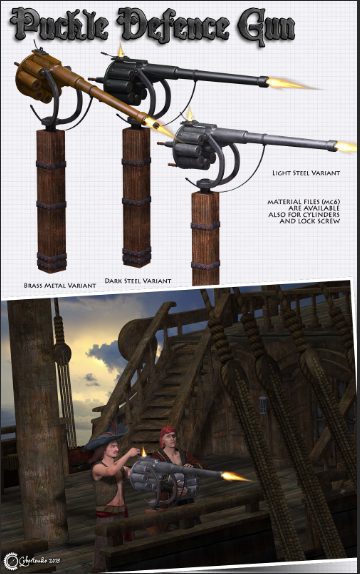

Puckle demonstrated two versions of his basic design - one, intended for use against Christian enemies, fired conventional cannon balls, while the second variant, designed to be used against the Muslim Turks, fired square bullets. The square bullets were considered to be more damaging. The square bullets, however, were discontinued due to their unpredictable flight pattern.

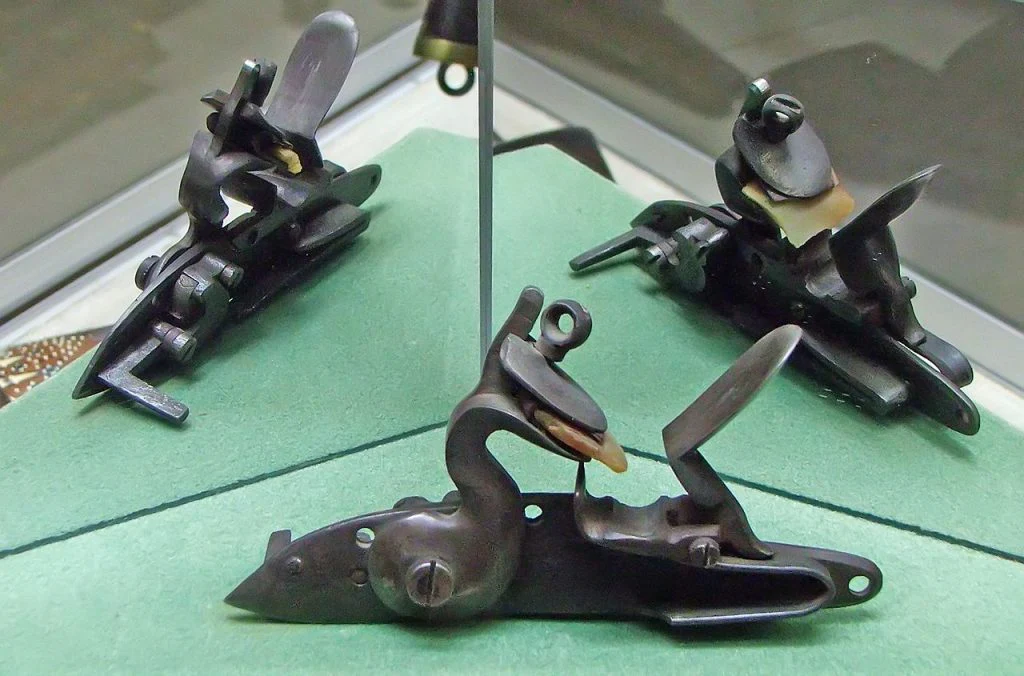

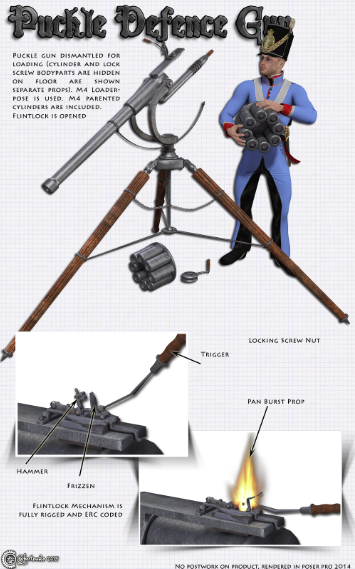

The Puckle gun was fired in a similar fashion to a conventional flintlock musket; however, after each shot, a crank on the threaded shaft at the rear would be unscrewed to release the cylinder to turn freely. The cylinder would then be advanced by hand to the next loaded chamber, and the crank turned back again to lock the cylinder into the breech of the fixed barrel. The flintlock mechanism could then be primed for another shot.
According historical sources the gun was able to fire 63 shots in seven minutes which mean approximately nine rounds per minute. However there is no evidence that the gun were ever used in any battle.
Many members of the anti-gun community in the United States argue that the founding fathers could not have anticipated modern weaponry’s rate of fire when they wrote the 2nd Amendment. The existence of weapons like the Puckle Gun and the Girandoni air rifle prove that the gunsmiths of the 18th Century not only anticipated semi and fully-automatic weapons, they were actively trying and did to build them.
NOTE: The Operator with the "eye patch" may have been one of @SimonRL 's distant relatives, or is there a "Puckle" in the Family Tree?

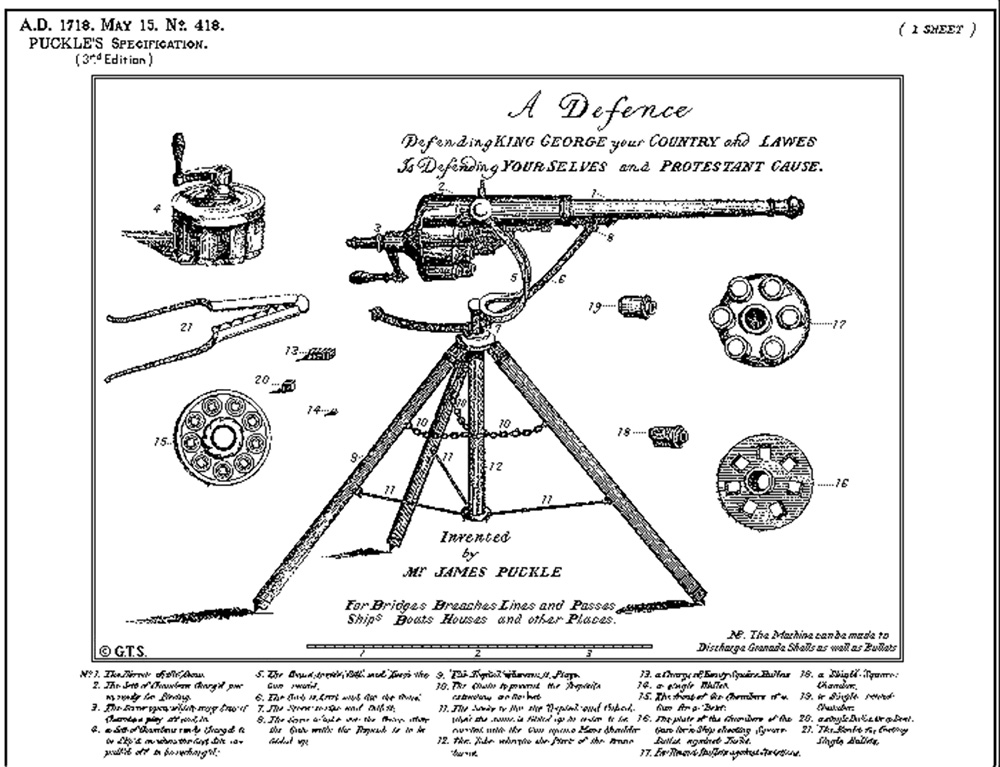

Puckle gun - Wikipedia
The Puckle Gun or Defense Gun
Invented and patented in 1718, this early machine gun was designed to fire either round and square bullets, depending on who the enemy was...
www.historic-uk.com

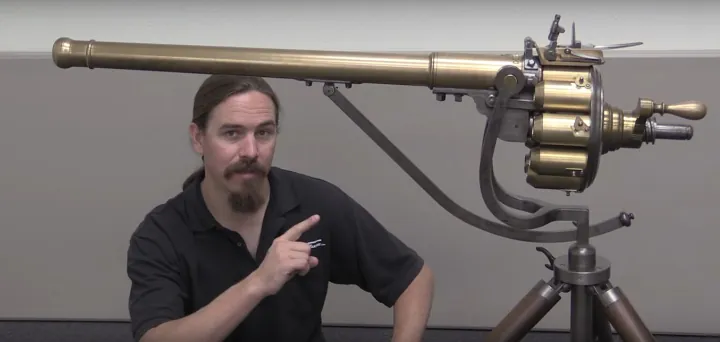

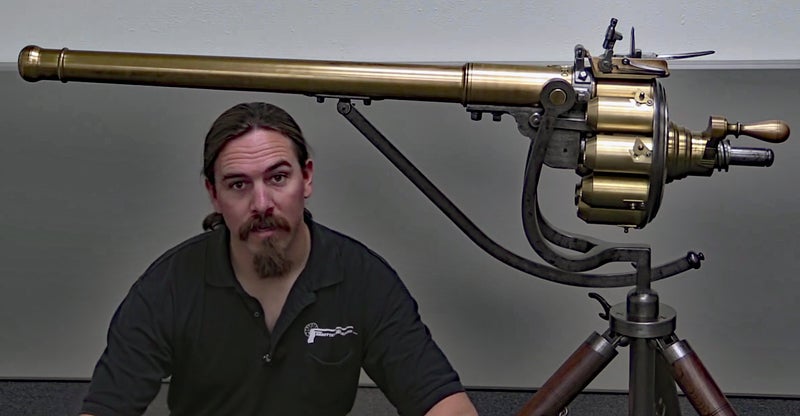

Watch: Puckle Gun, Large Repeating Military Firepower From 1718 - AllOutdoor.com
