Does anyone have a 10 round and an 11 round hellcat magazine? What's the difference? Is it just a different follower that makes it only possible to load 10 rounds? My state has a ban on BUYING magazines over 10 rounds but it is not illegal to possess them. I am hoping I can replace a follower or do a little modification and get that extra round back.
I don't know of anywhere you can buy just the standard follower. Springfield doesn't sell "parts" as it were, except for what you see on the website. I think your only option would be to go to a neighboring free state and buy standard mags. Assuming, of course, you're allowed to do that by MD law.
Not legal advice.... but you may be able to 3d print a follower or trim off excess plasic/spacer. The other option is a mag extension like the hyve extender. All depends on if that is allowed as well.
That would be even better but the issue is most of the extenders say they work on the 11rd mag but not the 10. I'm trying to ascertain what the difference is that they wouldn't work for the 10, or if I can at least get that extra round in from the follower.
Looing at the picture of the 10 round mag, externally, it looks like an 11 round mag, except it is just missing the 11th round sight hole. I am betting that it is just a spacer at the bottom of the mag and not a different follower. If you can open one of your 10 rounders and verify, maybe post a pic, I can compare it to the 11, 13, and 15 round mags that I have here.
If you need any different angles or better light let me know.

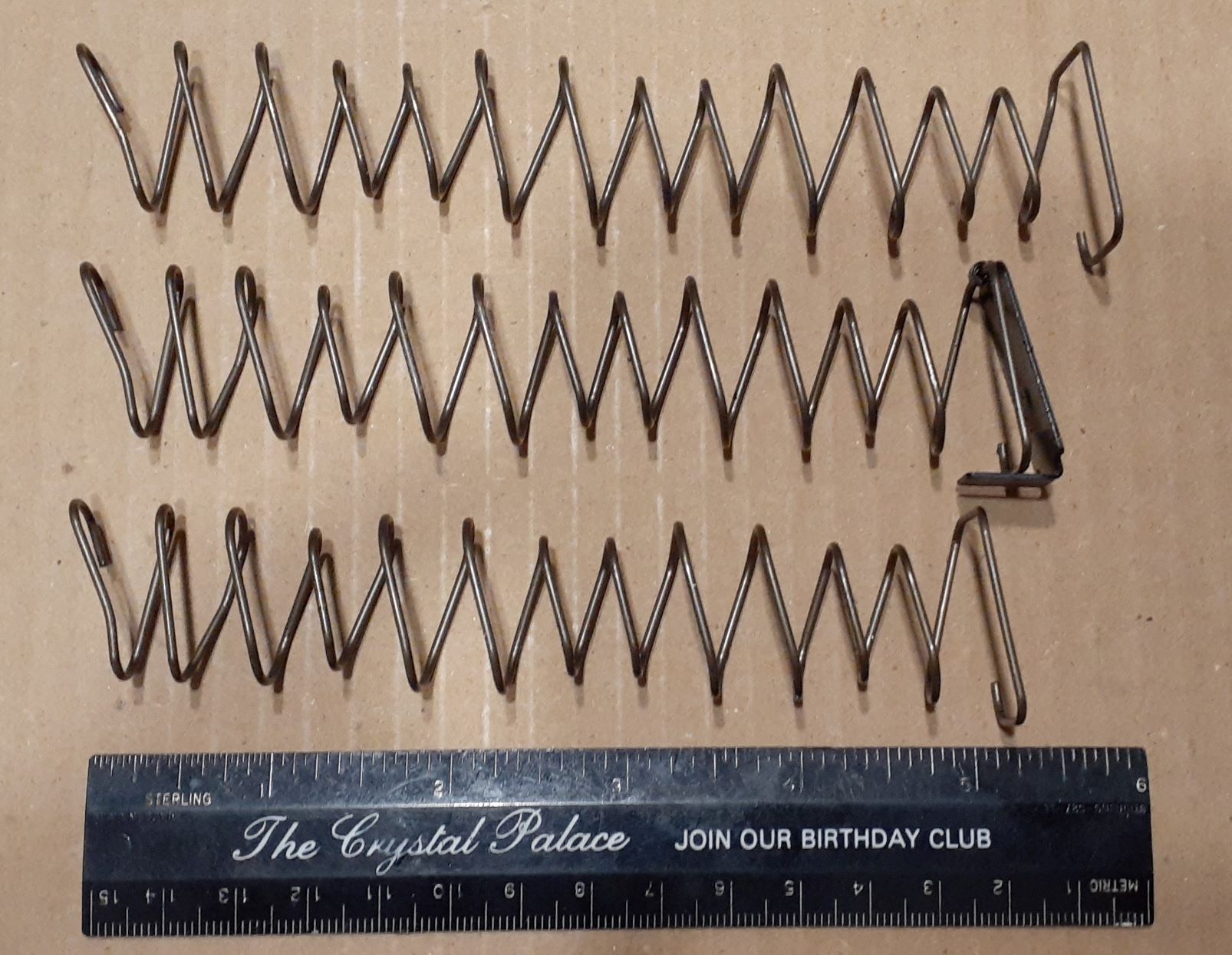

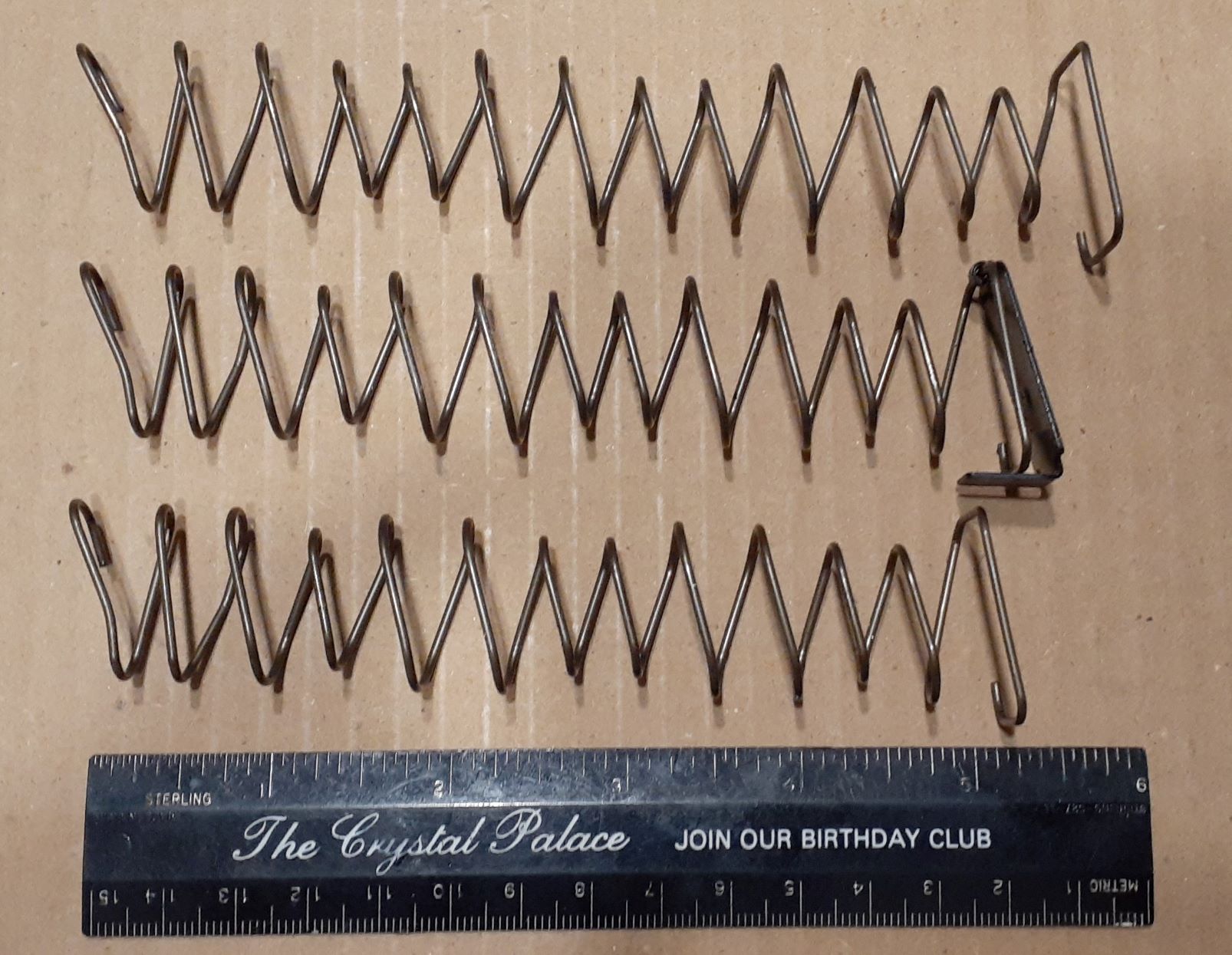

Edit: here's the spring/follower (round for scale)

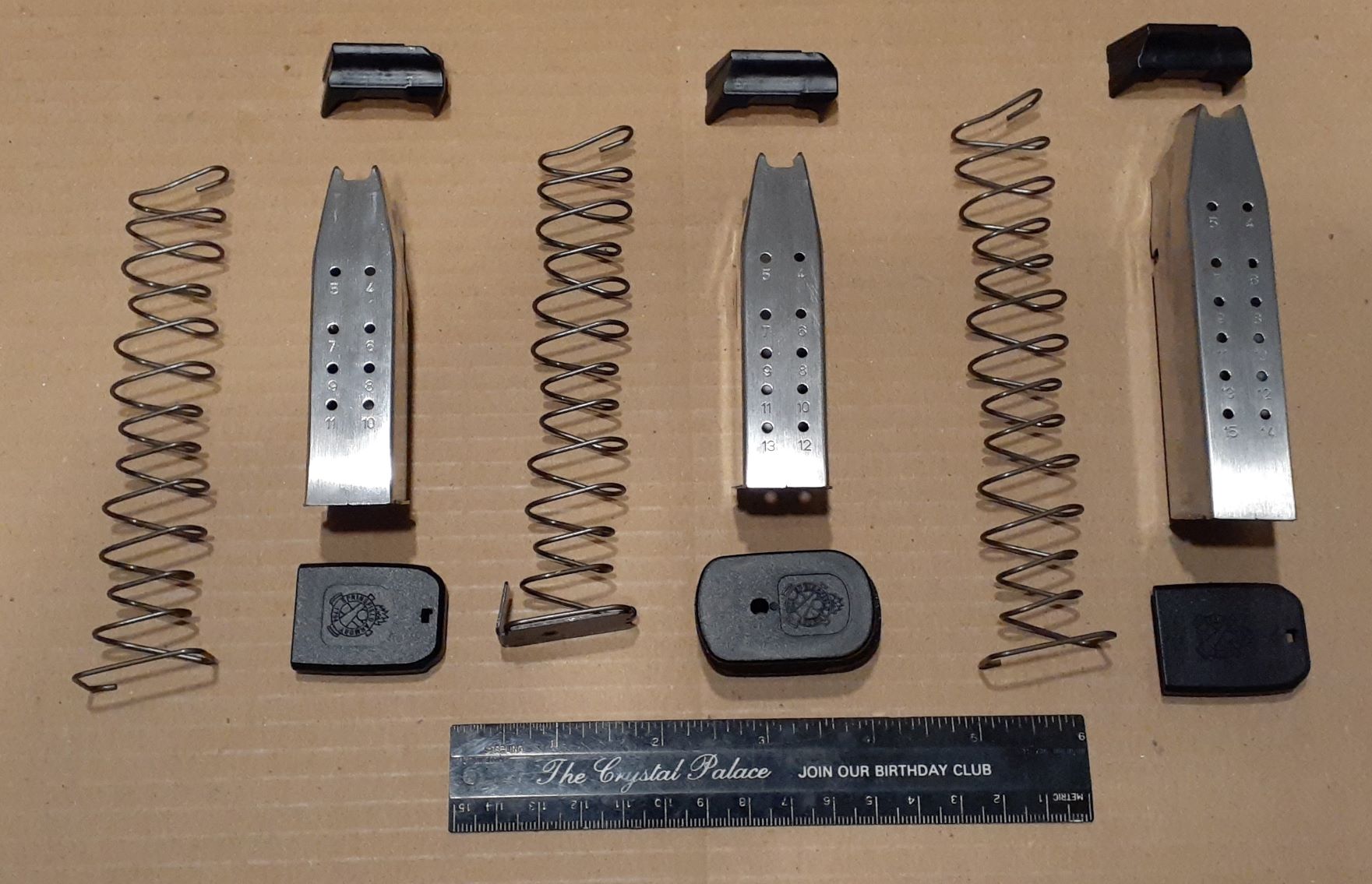

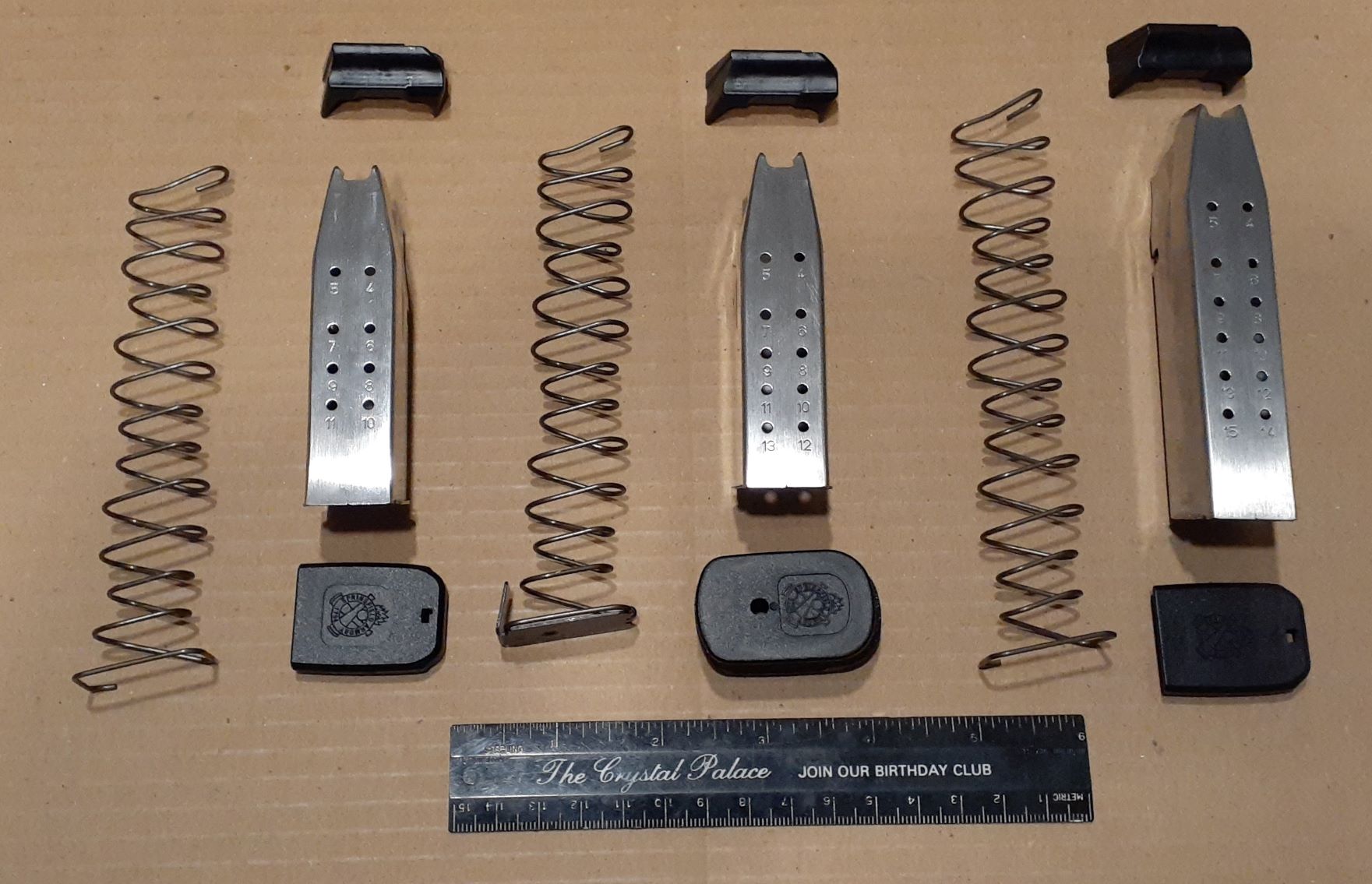

From what I can tell,
1. The follower is the same for the 11, 13, and 15 round magazines, so I would think that the 10 is the same.
2. It looks like the 13 round mag is just an 11 with a +2 base plate
3. The 11 and 13 round springs appear to be the same length/turns. I don't know why the changed the base plate retention method for the 13.
4. The 15 round is just longer.
5. The +2 baseplate fits on the 15 round mag, so yo could do a 17.

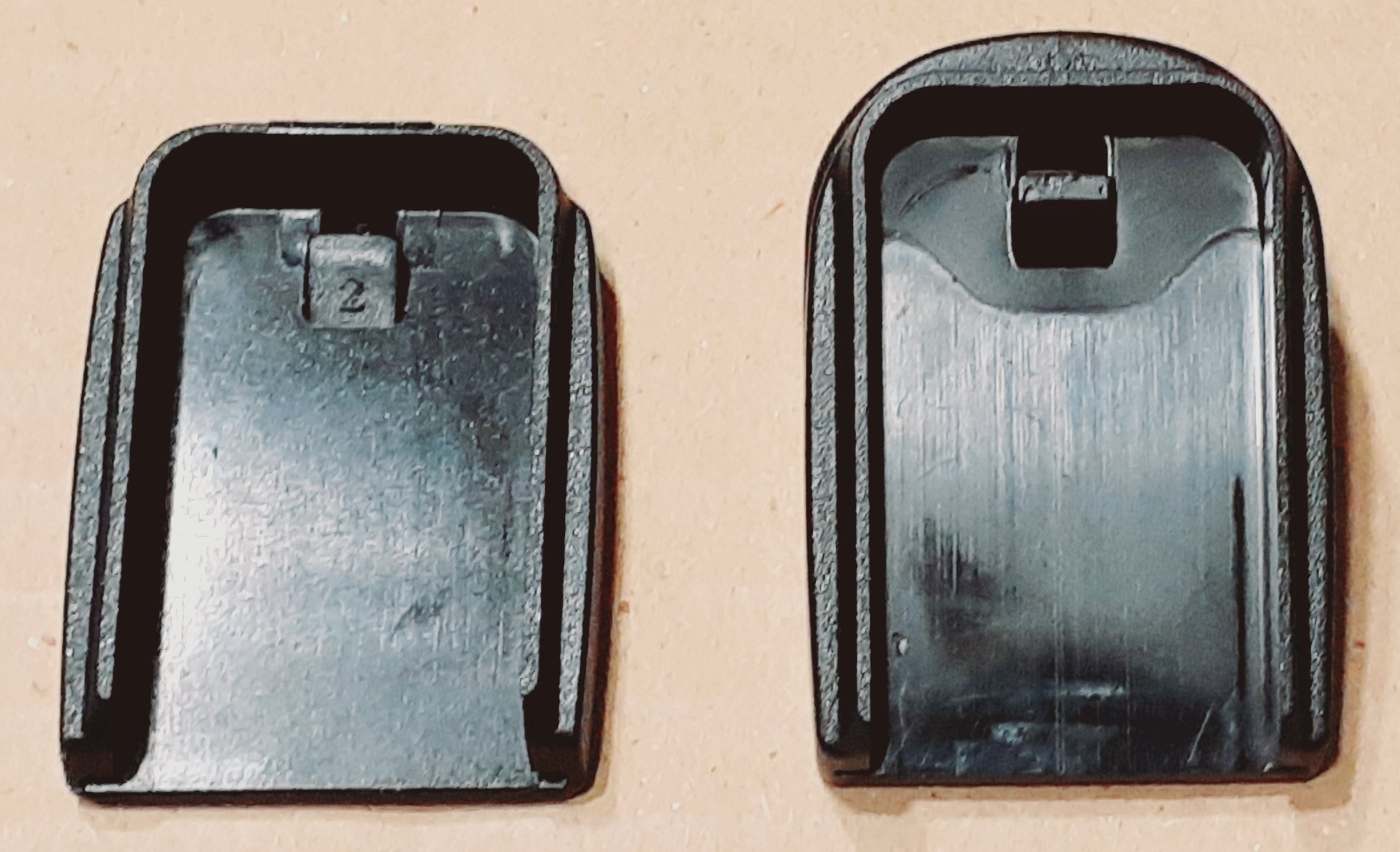

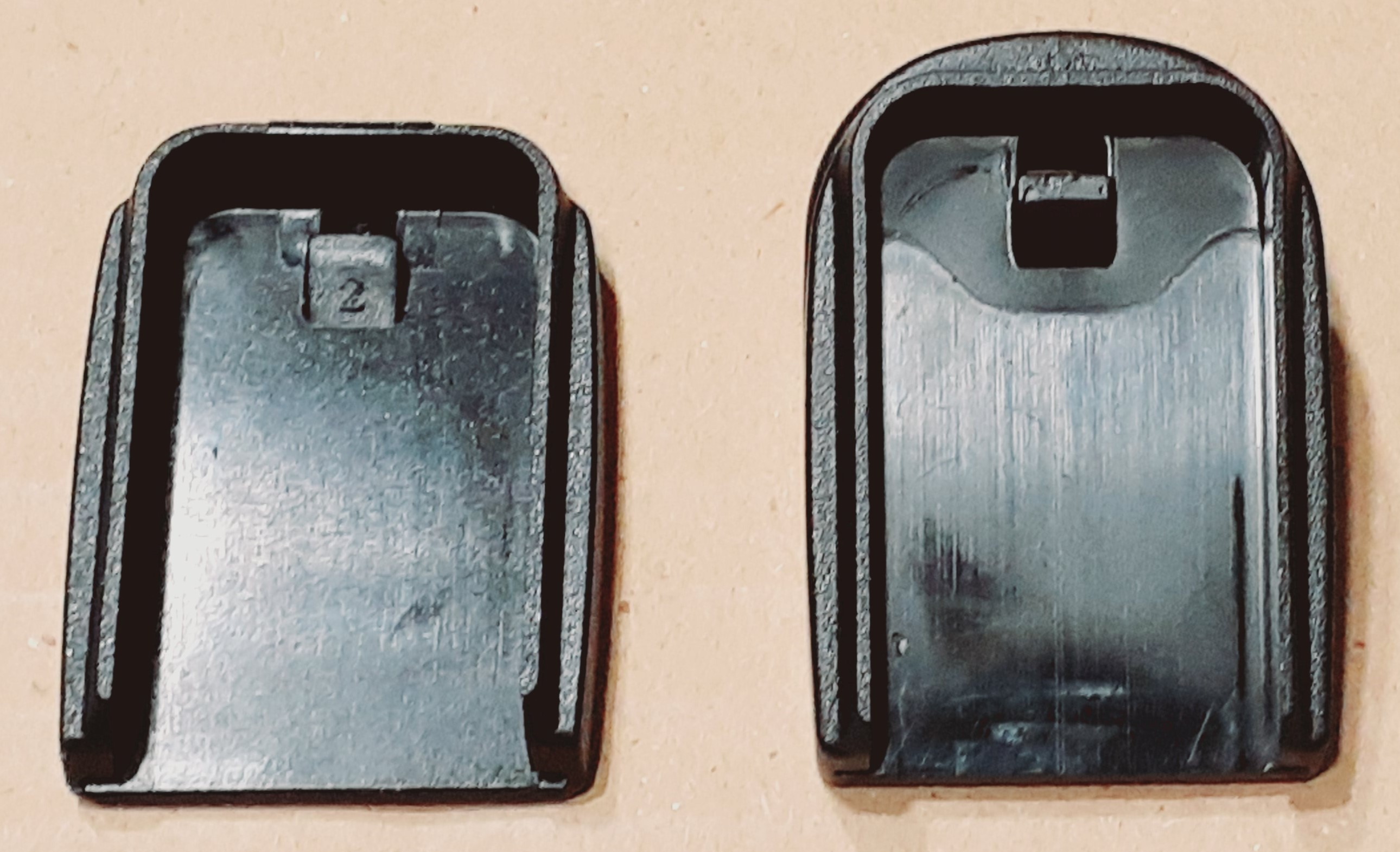

Looking closer at your base plate, I think that the 1 round spacer is integrated into it. So I think that you just need a "flat" base plate to got 10->11. or a plus (+) adapter to go above 10.
Update: for the +2 baseplate to work , you would have to somehow get that plate off bottom of the 13 round spring as well since that is what keeps it in place.
Hope this helps.
1. The follower is the same for the 11, 13, and 15 round magazines, so I would think that the 10 is the same.
2. It looks like the 13 round mag is just an 11 with a +2 base plate
3. The 11 and 13 round springs appear to be the same length/turns. I don't know why the changed the base plate retention method for the 13.
4. The 15 round is just longer.
Looking closer at your base plate, I think that the 1 round spacer is integrated into it. So I think that you just need a "flat" base plate to got 10->11. or a plus (+) adapter to go above 10.
Update: for the +2 baseplate to work , you would have to somehow get that plate off bottom of the 13 round spring as well since that is what keeps it in place.
Hope this helps.
Last edited:

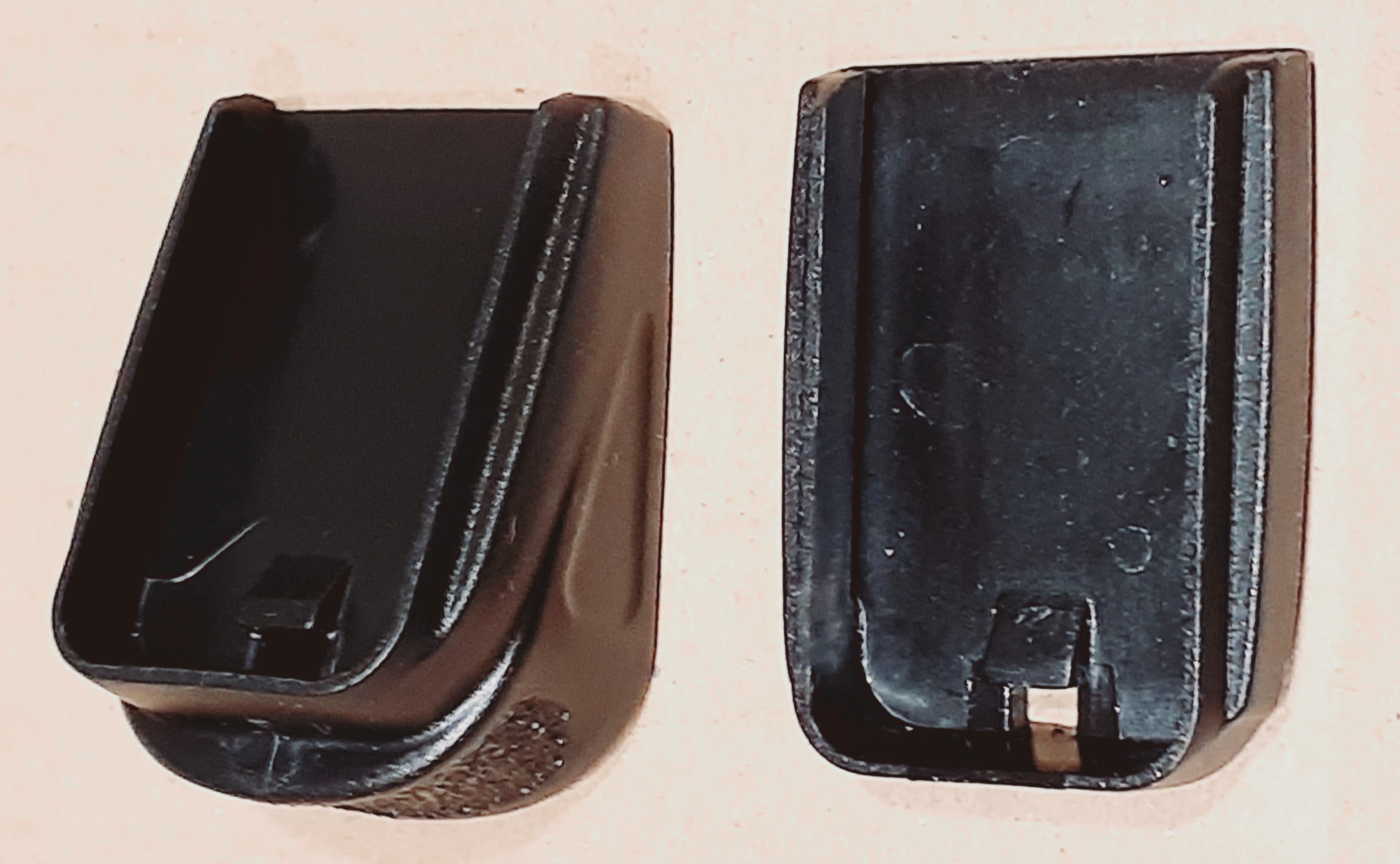

Can you send a pic of the top of your baseplate so that I can see what you mean? Thanks for your reply!
I FOUND THE DIFFERENCE!
The 10 round mag bends in at the bottom. My 15 round mag bends outward. And it looks in your picture like the 11 & 13 does as well.
Yeah. I already messaged a couple manufacturers that make the extended plates for the hellcat and none of them have any intentions of making a version for the 10 rounders.
J
J Damage
Guest
Late to the your post, but wanted to put it up.
Springfield Hellcat Magblock 10/11 (9mm)
10 round limiter for Springfield Hellcat 9mm magazines.
Late to the your post, but wanted to put it up.
Springfield Hellcat Magblock 10/11 (9mm)
10 round limiter for Springfield Hellcat 9mm magazines.www.magazineblocks.com
That is the opposite of what I'm looking for.
J
J Damage
Guest
Sorry, not only late to your post, also wrong info given.That is the opposite of what I'm looking for.
Talyn
SAINT
The magazine bodies are the same for all the mags.
The 11th round is the first round on the follower, as well with the others that have extended base plates/pads.
No extra sight hole(s) are needed.
There is a difference between the 10 round and the others. Look at the lips the hold the baseplate. The 10 rounder is folded in. The lips on the 11, 13, and 15 rounders are folded out. I was speculating on the differences before I saw the pictures of his 10 rounder.
Talyn
SAINT
Minor difference in order to hold the extended base plates better. The "bodies" & the number of holes are still the same.
