New Saint Edge PDW owner - Blast Diverter question
- Thread starter ars0n
- Start date
-
- Tags
- hate brake pdw
TEXASforLIFE
Ronin
Did you purchase it new? Possible it's pin and welded if not loctite? I don't own and SA ar rifles ,so I couldn't say for sure. Look towards the back of the muzzle device at the bottom for a hole(pin hole).
uspatriot1960
Custom
The PDW may be different. Doesn't look like you can take the handguard off with the barrel attached. I looked at the parts blow up page in the manual on this firearm and it looks like the blast diverter is two parts. Go to the page for the Edge PDW, click on the manual and towards the end of the manual is the parts blow up for the PDW. You'll see there's something called a muzzle brake cone and a muzzle brake shroud. Hard to tell if they come off together or if you have to take the cone off before the shroud. I don't see anything on there regarding a pin for the brake, so I doubt there is one. I also don't think they'd pin or weld the brake on since it's a pistol and there's no need for that. The pin/weld is usually there for a rifle with a less than 16" barrel to make it legally a rifle with the addition of the muzzle device.
uspatriot1960
Custom
Looking into this a little (piqued my interest), the blast diverter on the PDW is made by Maxim Defense and is called the Hate Brake. Yes, it takes a 3/8" socket to remove. And not an actual 3/8" socket, but there is actually a square inside the diverter in which a 3/8" socket wrench would fit into. Looks like what you can do is take a 3/8" extension and put it on the socket wrench to turn the diverter off. Hope that makes sense and helps.
Thank you so much for you help on this.
I am trying to picture this as my smith has the gun right now.
I am placing a 3/8 sized socket wrench socket with an extender (cause the normal square probably wouldnt reach all the way in far enough?) into the diverter square. (NO SOCKET(s) ATTACHED)

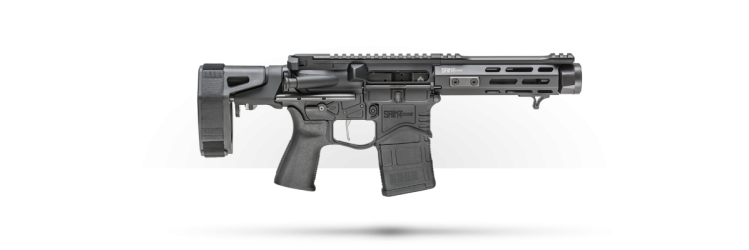

pic1
I have a feeling my smith was trying to use a giant ass socket around the outside shroud to remove?
I am trying to picture this as my smith has the gun right now.
I am placing a 3/8 sized socket wrench socket with an extender (cause the normal square probably wouldnt reach all the way in far enough?) into the diverter square. (NO SOCKET(s) ATTACHED)

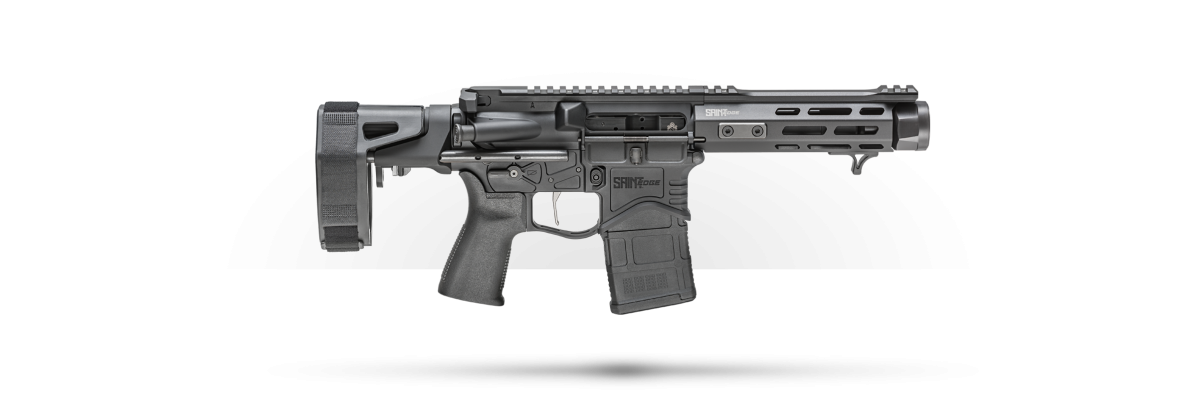

pic1
I have a feeling my smith was trying to use a giant ass socket around the outside shroud to remove?
Attachments
uspatriot1960
Custom
Yeah, just add an extension, like the one below, to a socket wrench and the square should fit right in to remove it. At least that’s the way it seems to me.
Just called him and spoke to him, he said he tried that, however, could start to see the receiver start to flex, so he didn't want to put any more pressure on it.
He said that he heated it up, tried boiling it in case of rocksett, and soaked over night, and used the inside portion with a 3/8 extender. No luck...
crap =(
He said that he heated it up, tried boiling it in case of rocksett, and soaked over night, and used the inside portion with a 3/8 extender. No luck...
crap =(
TEXASforLIFE
Ronin
In some cases you have to remove the attachments on the handguard before removing the handguard. This is due in need of clearance over the muzzle device. If not pinned and/or welded(loctite only) needs to be warmed up by a lighter or a heat gun to loosen the thread loc.
TEXASforLIFE
Ronin
Seems like it might be pinned/welded?
Gun is naked, removed everything, just the upper, the handguard and the hate brake. I dont think I can take the hand guard off with out taking the brake off first. Crazy it would be on there so hard. My smith is a big guy. Springfield Armory customer support said that the brake is not pin welded or rocksett, just torqued on.
TEXASforLIFE
Ronin
It wouldn't make any sense that a company would add a devive on the end of a barrel larger than the handguard id?
TEXASforLIFE
Ronin
Sometimes a little extra tightening will help loosen? I only say that as only used technique on my own firearms.
BangBang
Professional

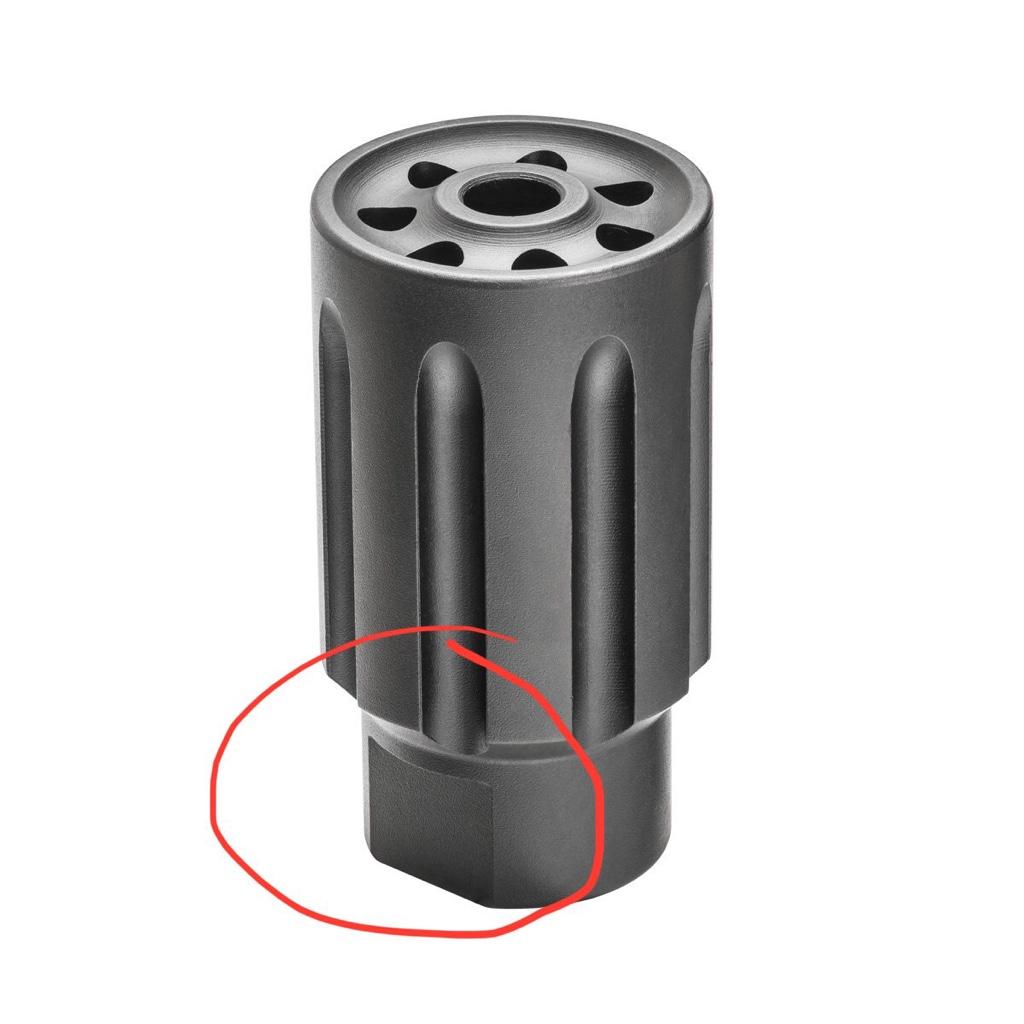

If you have shot your rifle the diverter has gotten hot. It will be a little tough to remove. You need a bev block or something to hold your barrel, a barrel fixture. You need to remove your handguard and on the diverter should be two flat spots. Take some channel locks and put it on those flat spots and take the diverter off. I’m pretty sure SA doesn’t use loctite, some companies use Rockset but not aware of SA doing this.
uspatriot1960
Custom
Wrong blast diverter. His is for the Edge PDW, That’s different than the one you’re showing. That one is on the Saint Victor pistol.If you have shot your rifle the diverter has gotten hot. It will be a little tough to remove. You need a bev block or something to hold your barrel, a barrel fixture. You need to remove your handguard and on the diverter should be two flat spots. Take some channel locks and put it on those flat spots and take the diverter off. I’m pretty sure SA doesn’t use loctite, some companies use Rockset but not aware of SA doing this.
Mine is different, looks to be based off the hate brake from maxim defense. Thank you very much for your reply!!If you have shot your rifle the diverter has gotten hot. It will be a little tough to remove. You need a bev block or something to hold your barrel, a barrel fixture. You need to remove your handguard and on the diverter should be two flat spots. Take some channel locks and put it on those flat spots and take the diverter off. I’m pretty sure SA doesn’t use loctite, some companies use Rockset but not aware of SA doing this.
Your gun smith should be using a tool like this barrel vise rod so there's no torque on the receiver and all the force goes directly to the barrel or at the very least he should have a barrel vise block.
MIDWEST INDUSTRIES, INC. AR-15 UPPER RECEIVER ROD | Brownells
Ever dealt with those stubborn barrel nuts that just won't work loose? The Midwest Industries AR-15 Upper Receiver Rod is designed as the perfect tool for AR builders looking to overcome stubborn, stuck parts. Each Midwest Industries AR-15 Upper R...
www.brownells.com
Yes brand new btw.
I will confirm, pretty sure he was. He has done a few of my ar barrels before but never asked. Thank you!!Your gun smith should be using a tool like this barrel vise rod so there's no torque on the receiver and all the force goes directly to the barrel or at the very least he should have a barrel vise block.
