Review: Springfield Armory XD-M Elite 3.8" Compact OSP .45 ACP

December 13th, 2021

4:57 runtime

Springfield Armory continues to build out its XD-M Elite line of pistols. The newest XD-M Elite 3.8” Compact OSP adds an easy to conceal, easy-to-shoot .45 ACP to the line-up. It shares a lineage with the rest of the XD-M Elite family, but most closely resembles its 9mm cousin, the XD-M Elite 3.8” Compact OSP 9mm.

The .45 ACP 3.8” Compact is a 10+1 gun that offers a solid capacity of big-bore cartridges for those looking to supplement the 9mm they already own with an additional caliber, or as a big-bore option for those that prefer the larger .45 ACP.

New Springfield XD-M Elite 3.8" Compact OSP .45 ACP pistol
The author ran the new XD-M Elite 3.8″ Compact OSP in .45 hard. It ate all kinds of ammo, even when the pistol was starting to get dirty.

Let’s take a look at the details of this new .45 concealed carry handgun.

XD-M Elite

When it comes to the XD-M Elite pistols from Springfield, you are getting a top-of-the-line polymer-framed pistol packed with all the features.

Springfield .45 XD-M Elite Compact OSP pistol with ammo
The XD-M Elite 3.8” Compact is a 10+1 concealed carry handgun that is optics ready and features match-grade parts.

For me, the “M” stands for Modernized. The new .45 Compact has all the trimmings to make it a modern performance handgun. The hammer-forged, Melonite-coated 3.8” barrel is match grade and is stamped as such to prove it. It certainly outshot my abilities when I tested it at 15 yards.

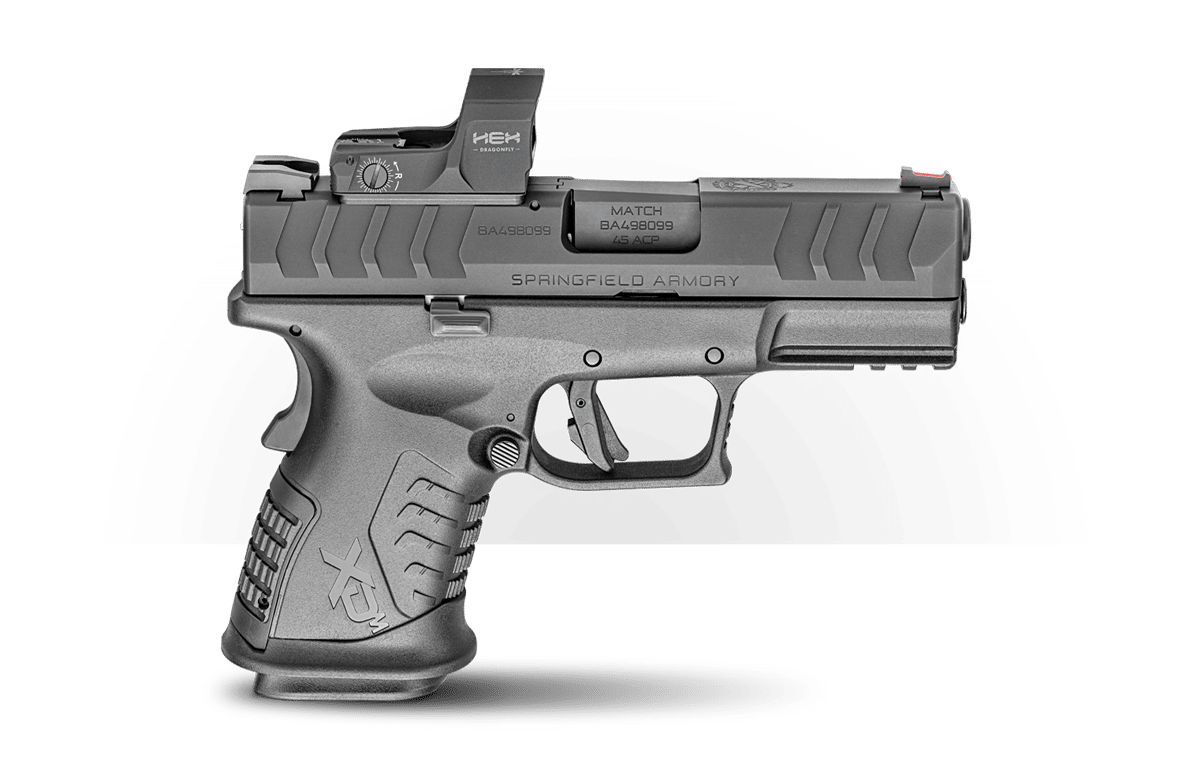

HEX Dragonfly on top of the Springfield XD-M Elite 3.8" Compact OSP pistol
The HEX Dragonfly is an attractive and practical red dot sight that fits the OSP cut. The author liked the adjustability of the dot.

The META trigger that the XD-M Elites sport is certainly a match-grade trigger. It’s one of the best performing out-of-the-box triggers I’ve tried on polymer handguns.

Sights on the XD-M Elite 3.8" Compact OSP .45 ACP
The fiber optic front sight is easy to pick up and it matches the rear Tactical Rack U-Dot sight well.

This particular trigger broke cleanly with a five-shot average of 5 lbs., 6.5 oz. The creep before the wall is long but smooth and consistent, and there was very little overtravel after the shot was fired and just a touch of a bounce. The reset spring is stout and provides a firm push as you move your finger forward. Again, I like this trigger a great deal.

Trigger Pull Measurements

15 lbs., 11 oz.
25 lbs., 5.5 oz.
35 lbs., 3 oz.
45 lbs., 6 oz.
55 lbs., 7 oz.
Average5 lbs., 6.5 oz.

The Slide

The XD-M Elite features don’t stop with the match-grade barrel and trigger.

The slide is of forged steel, creating a denser, stronger part. The grain of the metal aligns during the forging process and allows for finer machining and a more durable part. The slide is finished with a rich and attractive Melonite coating for durability and corrosion resistance.

XD-M Elite 3.8" Compact OSP handgun with ammo ready for testing
The new .45 ACP XD-M Elite is available with or without the HEX Dragonfly red dot. All of the pistols come with a Tactical Rack U-Dot rear sight.

The slide features both front and rear slide serrations that are practical and attractive. As indicated by the OSP in the name (which stands for “Optical Sight Pistol”), the top of the slide is cut for an optic and it wears a set of very practical sights.

The rear sight is a Tactical Rack U-Dot sight and the front is a high-visibility fiber-optic sight. It should be noted that the sights are standard-height sights, and if you are looking for backup iron sights for use with an optic mounted you will need likely to change them out.

A Compact Frame

The polymer frame of the XD-M Elite 3.8” Compact OSP has all the features you expect from an XD-M Elite. It features effective texturing, and the hand fits high under the beavertail to assist in recoil control. The triggerguard is aggressively undercut and the backstrap is replaceable (between three included sizes) to fine-tune the fit. The dust cover features a Picatinny rail for the mounting of accessories such as a light or laser.

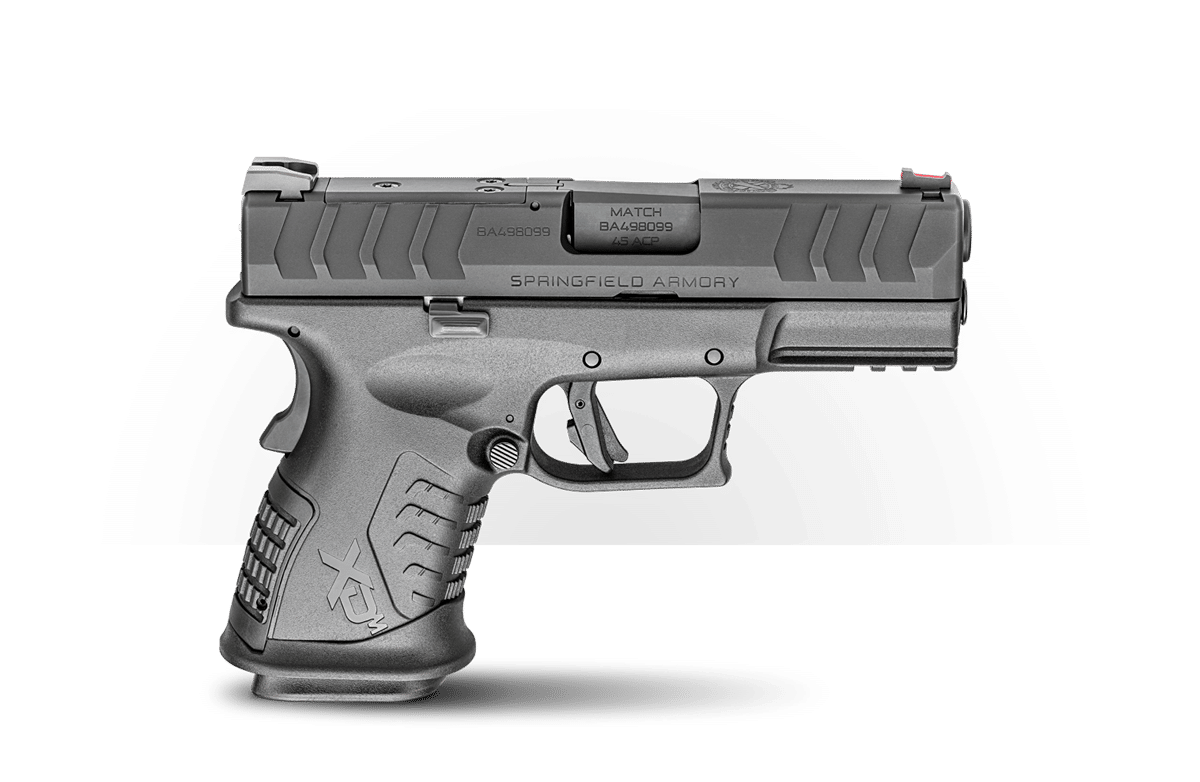

XD-M Elite 3.8" Compact OSP handgun
The heart of the XD-M Elite 3.8” Compact OSP is its 3.8” hammer-forged, Melonite finished match barrel.

The short flared magazine well is removable and allows shooters to quickly funnel in a fresh mag during a reload. I did all the shooting with the magwell in place, but the next time I take this pistol out the magwell will be removed to see if I can find a bit more purchase for my littlest, but still important digit.


We already addressed the META trigger, but I wanted to also address the rest of the controls on the pistol. One of my favorite features of the XD-M elite pistols is their completely ambidextrous nature. Both the magazine release and the slide stop lever are ambidextrous.

XD-M Elite 3.8" Compact OSP handgun
The XD-M Elite Compact frame has a removable short magwell, interchangeable backstraps, grip safety and a positive texture.

There is no need to swap controls to set them up how you want them. The mag release is on both sides of the gun all day, every day. The slide stop lever serves as both a slide lock and a slide release on both sides of the pistol. I very much appreciate the ability to operate the gun easily, regardless of which hand is my primary hand at the moment.


Here are the specs on the Springfield XD-M Elite 3.8″ Compact OSP .45 ACP:

Chambering.45 ACP
Weight25-26.5 oz.
Overall Length6.75″
SightsFiber optic front, Tactical Rack U-Dot rear; HEX Dragonfly red dot
GripsPolymer, integral
Capacity10+1 (two)
MSRP$653, $843 w/HEX Dragonfly

Have It Your Way?

As noted earlier, OSP stands for “optical sight pistol” and, from a practical stance, it means that the handgun is ready to have an optic mounted on the slide from the factory. Red dot sights are no longer the way of the future. Instead, they are here and now. Springfield is obviously aware of this, and the way they are developing their product line makes it clear.

Barrel on the XD-M Elite 3.8" Compact OSP in .45 ACP by Springfield Armory
The 3.8″ hammer-forged match barrel shot well and the captured recoil system kept this small gun shooting easy.

The New XD-M Elite OSP is available with or without the HEX Dragonfly red dot sight (see the Dragonfly review), but you might notice that the option that isn’t available is an uncut slide. This is a smart move on the part of Springfield. On the business end, it reduces the number of SKU’s that need to be manufactured, shipped and stocked. On the customer end, it makes sense because it provides the greatest flexibility to the customer.

Side view of the XD-M Elite 3.8" Compact OSP in .45 ACP by Springfield Armory
The trigger was consistent and smooth with a solid break at just under 5.5 lbs.

It’s simple: If you don’t want a red dot sight on your gun, leave the plate in place and run your irons. If you do want a dot, get one mounted up and sighted in. If you change your mind after you made your purchase? No big deal. Put the dot on or take the dot off. No need to have your slide cut.

Man field stripping an XD-M Elite 3.8" Compact OSP .45 ACP pistol
Takedown of the XD-M Elite 3.8” Compact OSP .45 ACP was simple with the captured recoil system. Cleaning the pistol is a snap.

Springfield is doing a good job of ensuring that you as the customer have all the options you might want in the future.


I really enjoyed shooting the XD-M Elite 3.8″ Compact OSP. Both Remington and Federal Premium ammunition sent some ammo to help with the project and I dipped into some of my personal stash to round out my testing.

Man shooting Springfield Armory XD-M Elite Compact .45 ACP pistol during range testing
The .45 has a solid push, but the gun and the HEX Dragonfly made it easy for the author to make rapid follow-up shots.

People talk about the .45 as being a big caliber, but in this XD-M Elite it doesn’t shoot like one. Instead, the gun simply has a slow, solid push.

I was thrilled with how the 3.8” gun performed at 15 yards. I turned the HEX Dragonfly down so that I had a very fine aiming point. I simply did my work and pressed the trigger. The XD-M Elite Match barrel took care of the rest. My groups with all the ammo I had on hand sat pretty much between 2” to 2.5” range if you discount one serious flyer I called.

Shooting Results

Springfield Armory XD-M Elite 3.8” Compact OSP .45 ACP:

LoadGroup SizeVelocity
Golden Saber Bonded .45 Auto 185-grain BJHP2.170”900 fps

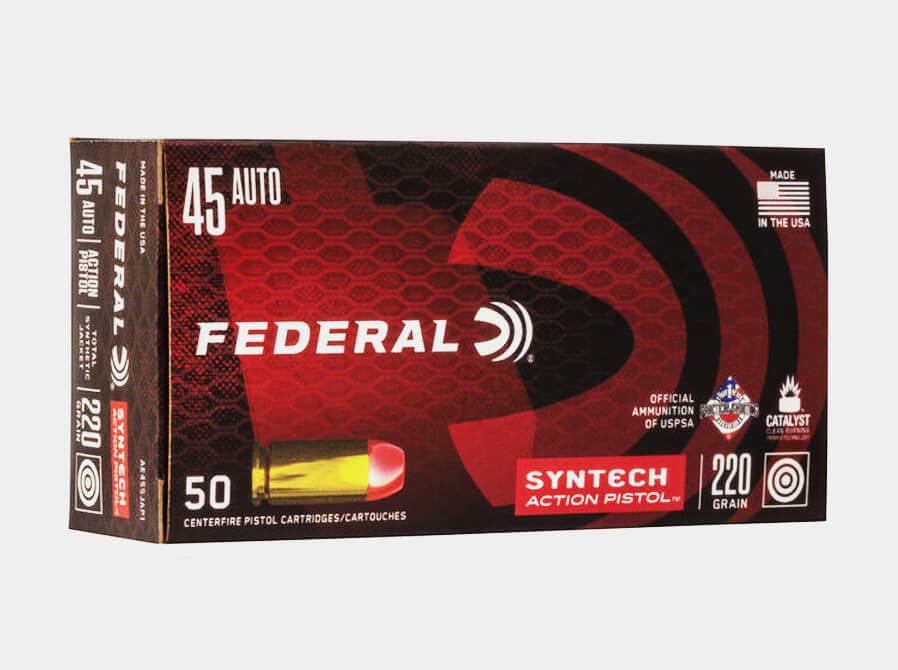

Federal Syntech Action Pistol .45 Auto 220-grain TSJ1.941”695 fps

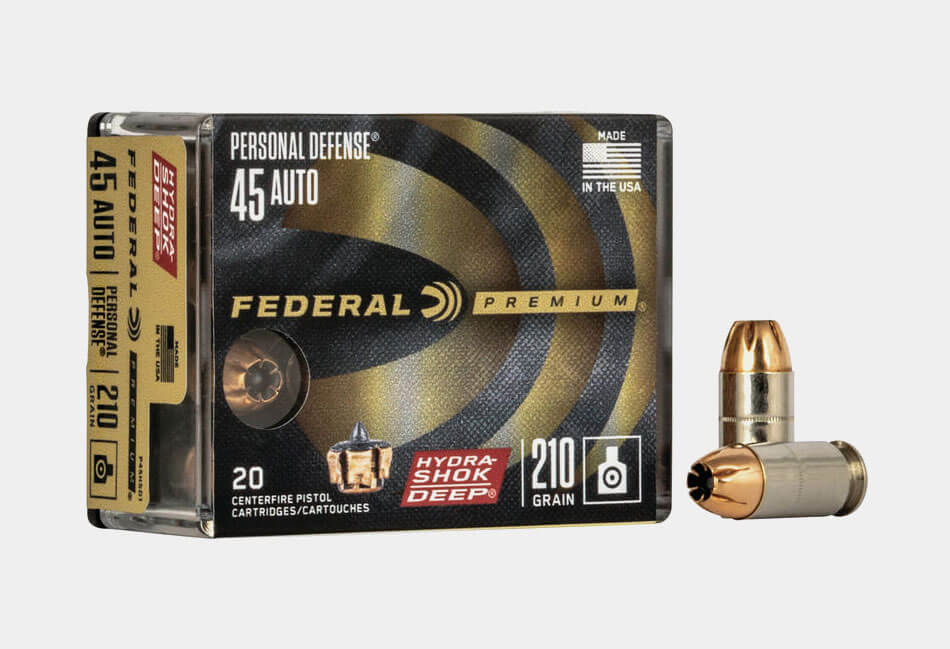

Federal Hydra-Shok Deep 210-grain 45 Auto2.305”903 fps
Magtech .45 ACP 230-grain FMJ2.591” (without flier)753 fps
The group size was measured center to center after shooting five-shot groups freehand at 15 yards. Velocity is the average of five shots using a LabRadar chronograph.


When we are talking about a carry gun, reliability is paramount. The XD-M Elite 3.8” compact didn’t disappoint. It ate everything I threw at it without a hiccup. I ran full metal jackets, synthetic jackets and hollowpoints. No issue. Bullet weights were all over the place, from 185-grain to 230-grain. The gun just ran.

Man shooting the XD-M Elite 3.8" Compact OSP .45 ACP pistol on the range
The author found the XD-M Elite 3.8″ Compact OSP .45 ACP pistol to be reliable in range testing.

My initial testing spanned a couple of hundred rounds, and I am confident that this pistol has the potential to be as reliable as you need it to be for self-defense.


The XD-M Elite 3.8” Compact OSP represents a solid offering for someone who is looking for a grip safety-adorned, optics-ready concealed carry handgun. It has a feature set that will please discerning shooters with reliability and precision to match.

Springfield offers this XD-M Elite with the HEX Dragonfly optic for an MSRP of $843 and without the red dot for $653.
